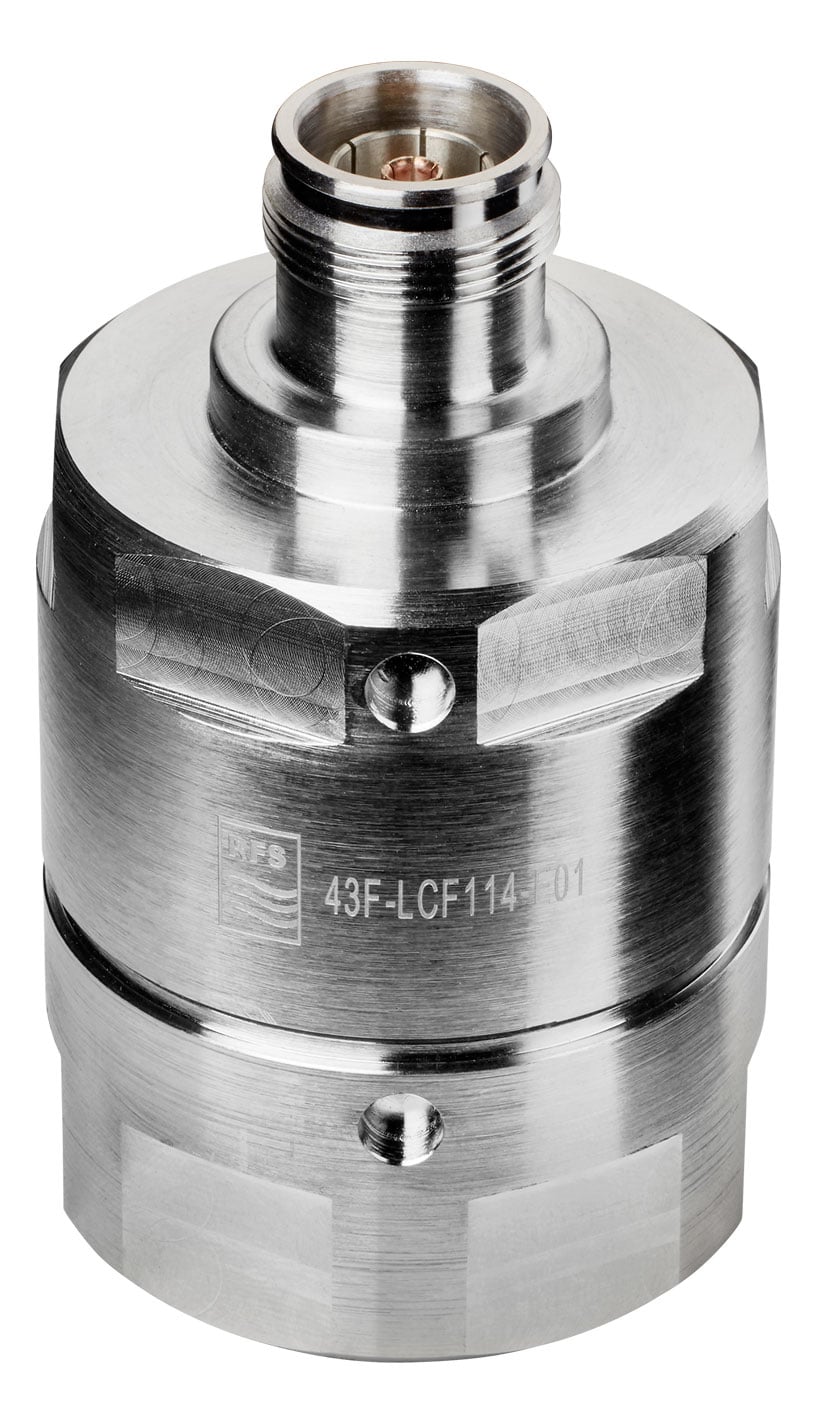

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS Technologies connectors are fully tested for mechanical and electrical compliance to industry specifications. The 4.3-10 connector is an innovative, space-saving RF connection meeting all requirements even under the most severe environmental conditions and not relying on coupling nut torque. Sealing against outer conductor and jacket by means of the o-ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.
Features & Benefits
- Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
- Two-piece design i.e. visual inspection of interlocking leads to improved installation security
- OMNI FIT™ concept i.e. streamlined order management and reduced stock level
- Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
- Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
- Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
- RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
Product Documents
Technical Features
General Specifications
| Transmission Line Type | Coaxial Cable | |
| Cable Size | 1 1/4 | |
| Cable Type | Foam Dielectric | |
| Connector Interface | 4.3-10 | |
| Connector Type | OMNI FIT™ PREMIUM Straight | |
| Sealing Method | Sealing Rubber + 360° Clamping | |
| Gender | Female |
Electrical Specifications
| Nominal Impedance, ohms | Ohm | 50 |
| 3rd Order IM Product @ 2x20 Watts | dBc | -163 ; typical -167 |
| Maximum Frequency | GHz | 6.0 |
| VSWR, Return Loss | VSWR (dB) | 0 < f ≤ 1.0 GHz: 1.02 (40) 1.0 < f ≤ 2.2 GHz: 1.04 (34) 2.2 < f ≤ 2.7 GHz: 1.06 (31) 2.7 < f ≤ 3.6 GHz: 1.08 (28) |
Mechanical Specifications
| Plating Outer/Inner | Tri metal alloy / Silver | |
| Length | mm (in) | 82.55 (3.25) |
| Outer Diameter | mm (in) | 50.95 (2) |
| Inner Contact Attachment | Basket | |
| Outer Contact Attachment | 360° clamping |
Accessories
| Wrench size front | mm (in) | 48 |
| Wrench size rear | mm (in) | 48 |
Testing and Environmental
| Waterproof Level | IP68 |
