POWER UP YOUR MICROWAVE BACKHAUL NETWORK FASTER THAN EVER

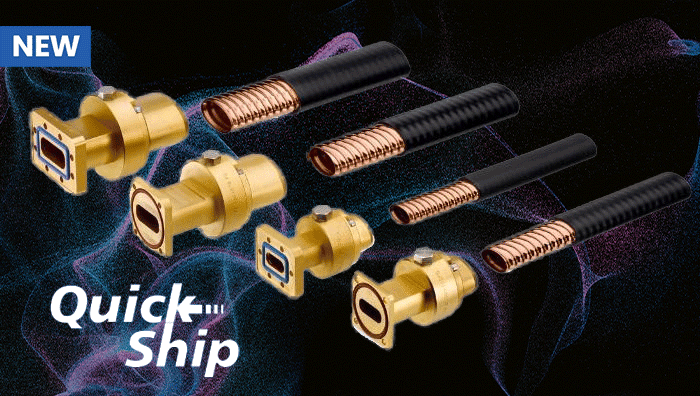

The waveguide quick ship program ships commonly used elliptical waveguides and related accessories in two (2) weeks from Meriden, Connecticut, USA.
Elliptical Waveguide Models Covered under Quick Ship Program
| Waveguide Model Number | EP60 | EP65 | EP105 | |||
|---|---|---|---|---|---|---|
| Performance Level | STD | PREM | STD | PREM | STD | PREM |
| Maximum. Frequency Band, GHz | 4.5 – 6.425 | 5.0 – 7.125 | 8.10 – 11.70 | |||
| Operating Frequency Band, GHz | 5.6 – 6.425 | 5.9 – 7.125 | 10.0 – 11.7 | |||
| Max. VSWR / Return Loss, -/dB | 1.15 / 23.1 | 1.062 / 30.5 | 1.15 / 23.1 | 1.062 / 30.5 | 1.15 / 23.1 | 1.062 / 30.5 |
| Low Band Attenuation, dB/100ft | 1.26 | 1.49 | 2.87 | |||
| Mid Band Attenuation, dB/100ft | 1.2 | 1.37 | 2.77 | |||
| High Band Attenuation, dB/100ft | 1.16 | 1.3 | 2.71 | |||
Maximum Order Quantities Covered under Quick Ship Program
| 5/6 GHz System | 6 GHz System | 10/11 GHz System | |||||
|---|---|---|---|---|---|---|---|
| Unit | Model Numbers | QTY | Model Numbers | QTY | Model Numbers | QTY | |
| Elliptical Waveguide | ft | EP60 | 3000 | EP65 | 5000 | EP105 | 3000 |
| Fixed Tuned Connector | pc | C137-060FG | 20 | C137-065FG | 20 | C90-105FG | 20 |
| Tunable Connector | pc | C137-060TG | 20 | C137-065TG | 20 | C90-105TG | 20 |
| Grounding Kit | pc | GKIT-60-060 | 60 | GKIT-60-065 | 90 | GKIT-60-105 | 60 |
| Hanger Kit | Kit of 10pcs | CLAMP-060 | 100 | CLAMP-114 | 150 | CLAMP-105 | 100 |
| Hoisting Grip | pc | HOIST1-158L | 20 | HOIST1-158L | 30 | HOIST1-78L | 20 |
| Angle Member Adapter Kit | Kit of 10pcs | ANGLE-CLPI | 100 | ANGLE-CLPI | 150 | ANGLE-CLPI | 100 |
| 4″ Boot | pc | BOOT4-060 | 20 | BOOT4-065 | 30 | BOOT4-105 | 20 |
| Twistflex | pc | TF137-CC1-036I | 20 | TF137-CC1-036I | 30 | TF090-CC1-036I | 20 |
| Pressure Window | pc | PW-C137 | 20 | PWC-137 | 20 | PW-C090 | 20 |
Note:
- Specify waveguide performance (STD or PREM) on purchase order.
- Does not include connector assembly.
- Larger order quantities can be shipped within 4-6 weeks.
WAVEGUIDE QUICK SHIP PROGRAM
To stay ahead of the competition, you need the power to accelerate site deployments. And you need a partner that can help you get the job done.
RFS Technologies is committed to powering your success. And we’ve launched our Waveguide Quick Ship program to help you achieve more and faster. With this program, waveguides and accessories are shipped from Meriden, Connecticut, USA, in two weeks from purchase order date.
FASTER ACCESS TO THE BEST ELLIPTICAL WAVEGUIDES IN THE INDUSTRY
RFS Technologies’ elliptical waveguide products have been used in thousands of successful installations. They are the highest-quality, best-performing, and most reliable elliptical waveguides in the industry.
RFS Technologies has carefully chosen the most popular elliptical models. With streamlined manufacturing and expanded capacity, we can ship selected waveguides without compromising on testing, cutting, and re-reeling processes. You are guaranteed to receive products compliant with published specifications and your cut length requirements.
EASY ORDERING IN A ONE-STOP SHOP
Additionally, RFS Technologies offers a full range of connectors, pressurization equipment, and accessories to support your end-to-end microwave waveguide network. We have included most-commonly used waveguides, connectors, and accessories in the Quick Ship program, which makes sure the whole package is shipped in two weeks after the order date. So, you can start site installation right after receiving these products.
We also offer technical support, field and classroom training, and BoM generation assistance.
Frequently Asked Questions
Will the product price get increased, or will there be a service charge in this Quick Ship program?
No. Quick Ship program is a program designed to ship selected elliptical waveguides and accessories in 2 weeks after order date, without price increase. However, RFS Technologies reserves the right to make necessary price adjustments.
Are there any other elliptical waveguide models available?
Yes. RFS Technologies also manufactures the EP78 waveguide, which covers 7.1 to 8.5GHz and provides related accessories.
What if I need a longer length than the maximum length, or a greater amount of accessories covered by Quick Ship?
Contact your Account Manager or the Quote team at (quotes@rfstechnologies.com) to get a lead time offer. There may be more lengths or quantities in inventory, or partial delivery can be offered.
What if accessories I need are not included in the Quick Ship program?
Contact your Account Manager or the Quote team at (quotes@rfstechnologies.com) for a solution. We have several other accessories available.
I need connectors to be installed on the waveguide in the factory. Can I get this connectorized waveguide shipped in 2 weeks?
No. Additional time is needed to install the connectors on the waveguide and test the assembly. This process can take 2-3 weeks, depending on factory workload.
What is a pre-tuned connector? Can I get pre-tuned connectors shipped in 2 weeks?
A pre-tuned connector is a tunable waveguide connector tuned and sealed in the factory according to the customer’s required frequency range. Pre-tuned connectors ensure optimal electrical performance and saves installation time. Pre-tuned connectors have different model numbers and are not included in Quick Ship program.
Can I get a dehydrator shipped in 2 weeks as well?
Currently dehydrators have a lead time of 4 to 5 weeks and improvement efforts are being made.
